Calculating VIX—the Easy Part


Saturday, April 5th, 2014 | Vance Harwood

The movements of the CBOE’s VIX® are often confusing.  It usually moves the opposite direction of the S&P 500 but not always.  On Fridays the VIX tends to sag and on Mondays it often climbs because S&P 500 (SPX) option traders are adjusting prices to avoid paying for time decay over the weekend.

In addition to these market driven eccentricities the actual calculation of the VIX has some quirks too.   The VIX is calculated using SPX options that have a “use by” date.   Every month, on the morning of the 3rd Friday, the current month’s options expire.  This schedule of expirations forces the VIX calculation to periodically switch to longer dated options.

The VIX provides a 30 day expectation of volatility, but the volatility estimate from SPX options changes in duration every day.  For example, on May 1, 2013 the May SPX options, expiring on the  17th, provide a 16 day estimate of volatility, while the June options, expiring June 21st provide a 51 day estimate.   To get a 30 day expectation the VIX calculation uses a weighted average of the volatility estimates from two months—in this case May and June options.

The full blown S&P 500 VIX calculation is documented in this white paper.  It computes a composite volatility of each month’s options by combining the prices of a large number (> 100) puts and calls.  The CBOE publishes the result of these intermediate calculations as VIN for the nearer month of SPX options (not necessarily the nearest), and VIF for the further away options at one minute intervals.  These indexes are available online under the following tickers:

  • Yahoo Finance as ^VIN, ^VIF
  • Schwab $VIN, $VIF; historical data available
  • Google Finance INDEXCBOE:VIN, INDEXCBOE:VIN; historical data available
  • Fidelity:  no coverage

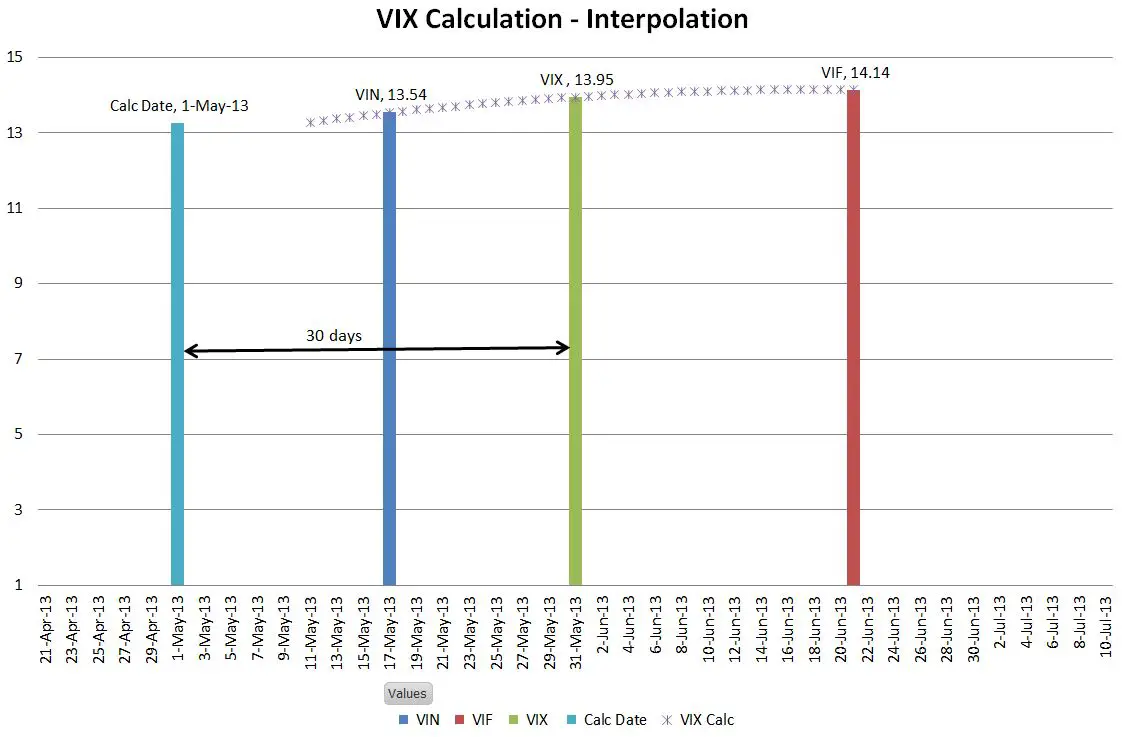

Using the VIN and VIF values in a  30 day weighted average calculation the final VIX value is determined.    Graphically this calculation looks like the chart below most of the time:

Calculation Date 1-May-2013

Calculation Date 1-May-2013



In this example the VIX value for May 1st is computed by averaging between the May SPX options (VIN) and the June SPX options (VIF) to give the projected 30 day value.   Clearly the averaging algorithm used by the CBOE is not just a linear extrapolation between VIN and VIF; I provide details on this calculation later in the post.

Options can be flaky in their last week, so when the VIN options are less than 7 days from their expiration the algorithm switches to the next pair of months.  The next chart shows the calculation right before the switch.

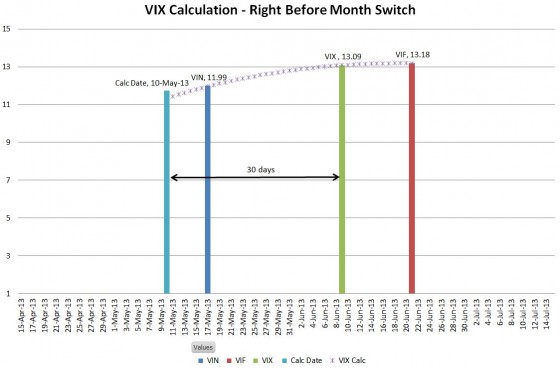

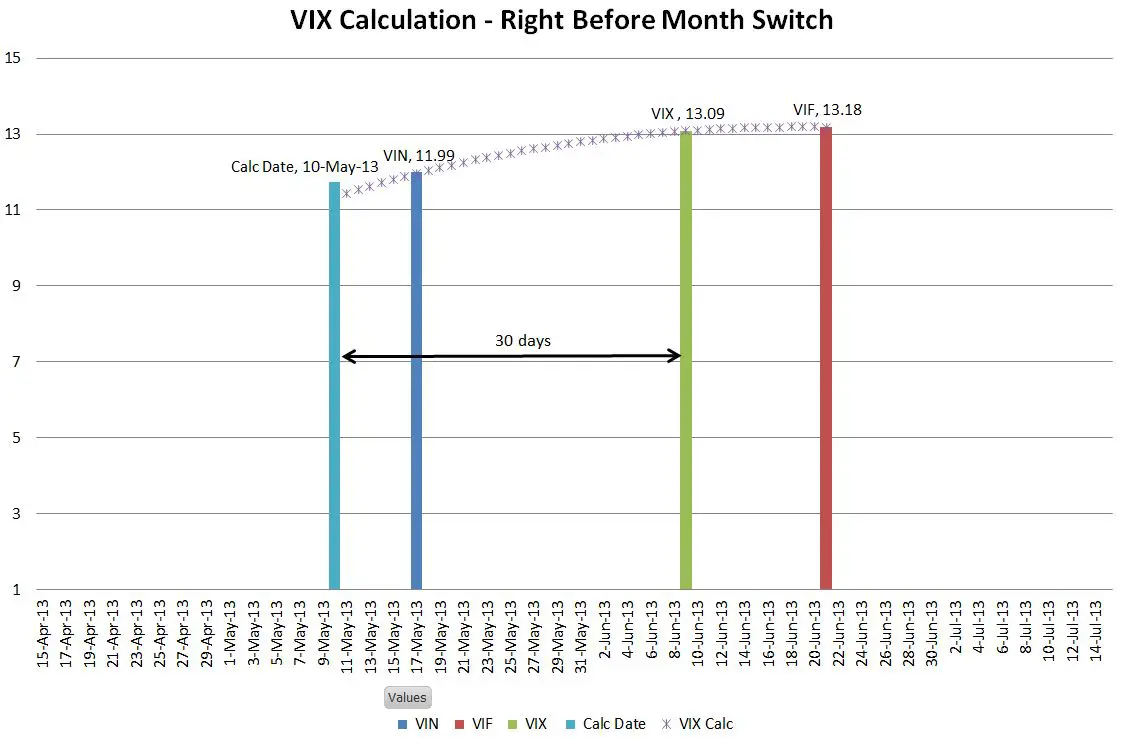

VIX calculation right before month switch

VIX Calculation 10-May-2013

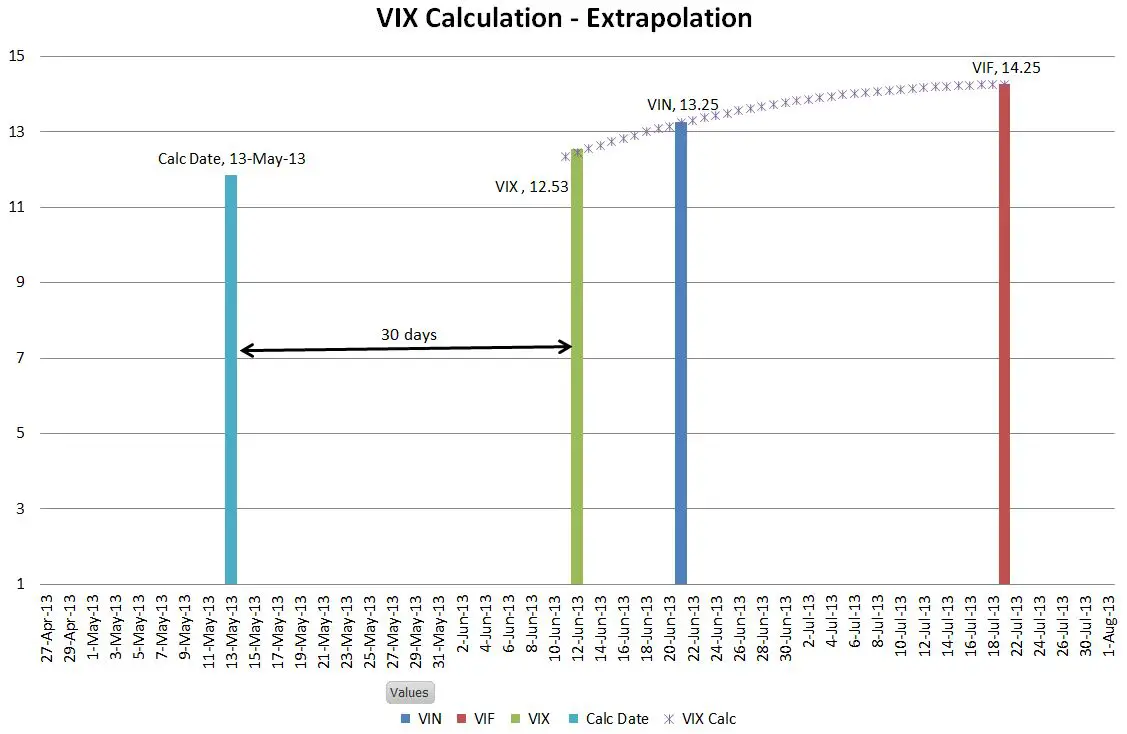

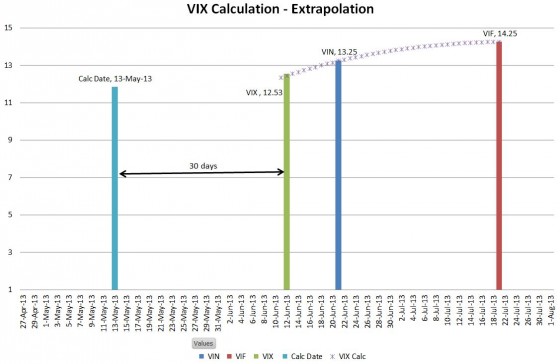

The chart below shows the calculation on the next trading day when VIN switches to June options and VIF uses July options.  Notice how the green VIX bar is now to the left of the blue VIN bar.

Calculation Date: 22-May-2013

Calculation Date: 13-May-2013



The VIX calculation is now outside the VIN / VIF values—an extrapolation.  If the term structure of the June / July options is significantly different than the May/June offering the resultant VIX value can jump significantly during this switch.  While the VIX calculation is in this extrapolation mode I suspect that the VIX’s weekend effects are stronger because any change in the VIN options will whip the VIX value around.

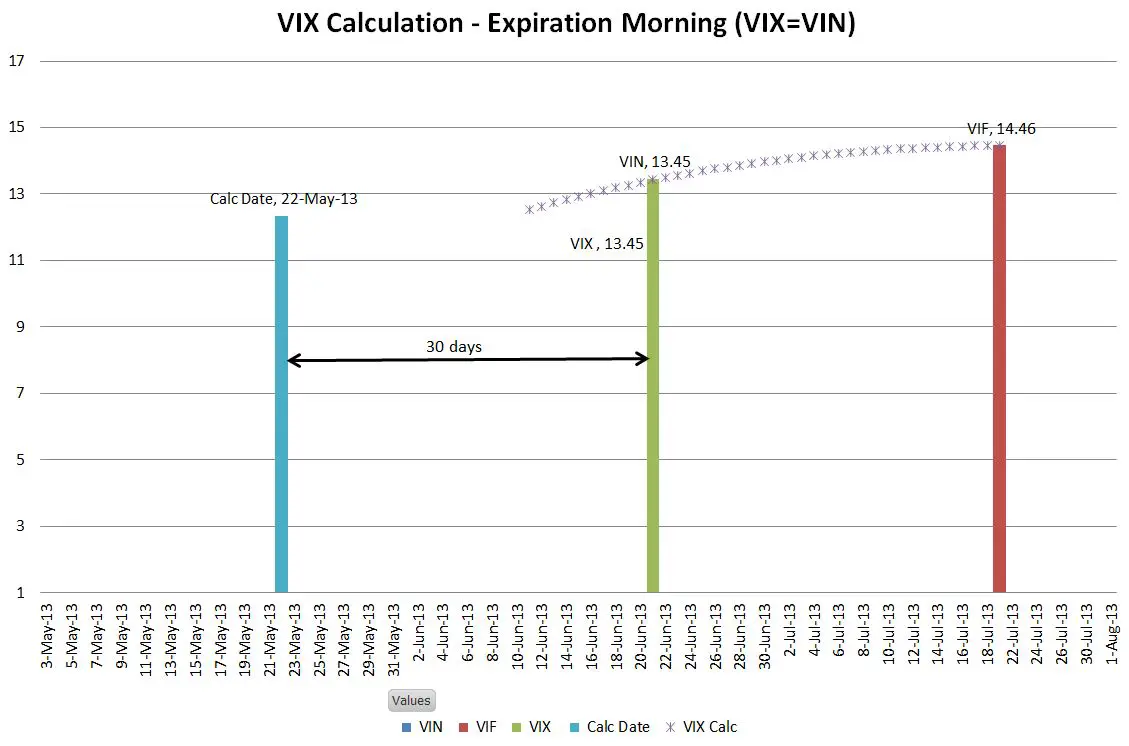

The chart below shows the special case situation of the VIX’s monthly expiration:

VIX Calculation 22-May-2013 -- Expiration

VIX Calculation 22-May-2013 — Expiration



On the Wednesday morning of VIX expiration the VIN SPX options are exactly 30 days from their expiration.  The result is that VIX = VIN and the special opening quotation SOQ and resultant final settlement value VRO only concern VIN options (June SPX in this example).    It doesn’t matter if an earlier series of SPX options hasn’t expired yet—they’re not included in the VIX calculation.

If you want to compute the VIX yourself using the VIN and VIF values you can’t just do a linear interpolation / extrapolation because volatility does not vary linearly with time.  Instead you have to convert the volatility into variance, which does scale linearly with time, do the averaging, and then convert back to volatility.  The equation below accomplishes this process.

VIX-VIN-VIF-eq

The SPX options used for VIX calculations expire the 3rd Friday morning of the month at 9:30ET.  See Trading SPX/SPXPM options  for more information.
